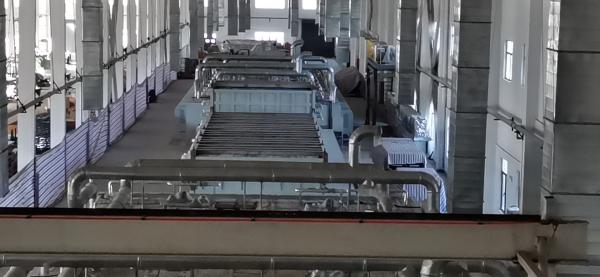

BOPET Film Production Line Φ1200 Mm Rewinding Diameter Bidirectional & Simultaneous Stretching Film Production Line
Product Description
Electric drive system:
The electric drive system of BOPET workshop provides driving devices for various parts of BOPET, including main extruder unit (extruder and metering pump control are provided by the buyer), cooling drum, longitudinal drawing unit, transverse drawing unit, traction unit and turnover double station winder.
The transmission device adopts AC servo transmission scheme.
The transmission device adopts photoelectric encoder feedback, and the speed stability accuracy can reach 0.1% (under rated speed).
All AC servo drives are equipped with PROFINET and PROFIBUS DP fieldbus interface, which can directly form fieldbus network with PLC controller.
The main extruder and cold drum require high transmission accuracy to ensure the uniformity of longitudinal tolerance of BOPET film.
Technical Data
| Casting film Thickness | 400~3200um |
| Finished film thickness | 50～300um |
| Casting film width | 1450mm |
| Finished film width | 4700mm |
| MD ratio | 1:1—1:4 |
| TD ratio | 1:2—1: 5 |
| Production speed | max140m / min |
| Main Extruder output | max 4000 kg/h |
| Sub Extruder output | max 1000 kg/h |
| Winding diameter | max φ1200 mm |
Major Function
. Bidirectional & simultaneous stretching
. PLC central control
. Longitudinal-stretching free
. Adjustable ratio of bidirectional stretching
. Auto rewinding
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Our Factory
Our customers
FAQ
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
