Efficient And Stable High Vacuum Metallizer Industrial Vacuum Packaging Machine Used To Metallize Films
Product Description
Mainly used for food packaging film,tobacco packaging,transfer film,metallic yarn ,etc.
Innovative free span metallizing design achieves no light line, no edge line, no wrinkle, no Al spatter, no pollution, especially suitable for low tension film like PET,OPP,CPP,Paper,etc.
Technical Data
| Substrate | PET,OPP,CPP,Paper,etc. |
| Substrate Width | 1000mm-4000mm |
| Film thickness | 8μm-50μm |
| Roll diameter | max. 1500 mm |
| Speed | max,1000m/min |
| PLC system | Siemens S7-400 series |
| Driving system | Siemens |
| Size | 14m×5.5m×2.8m |
| Heating method | electric / oil |
Features
1.Digital PLC Control
2.Single/Double-side Coating
3.Plasma Pre-treatment
4. Pattern Printing
5. Coating Thickness Monitor
6. Accurate Tension Control
Application
Various customers have made decsions for this vacuum metallizing machine serie, the application area of this metalliser is large:
- pharmaceutical packaging,
- tobacco packaing,
- laser film, hot stamping film
- transfer film, dielectric film
Packaging & Delivery
1. Prompt delivery;
2. Professional logistic agent;
3. Well-trained and disciplined packing team;
4. After-sale service: Any questions or problems after receiving the product, please feel free to contact us. Problems would be solved for you immediately.
Competitive Advantages
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

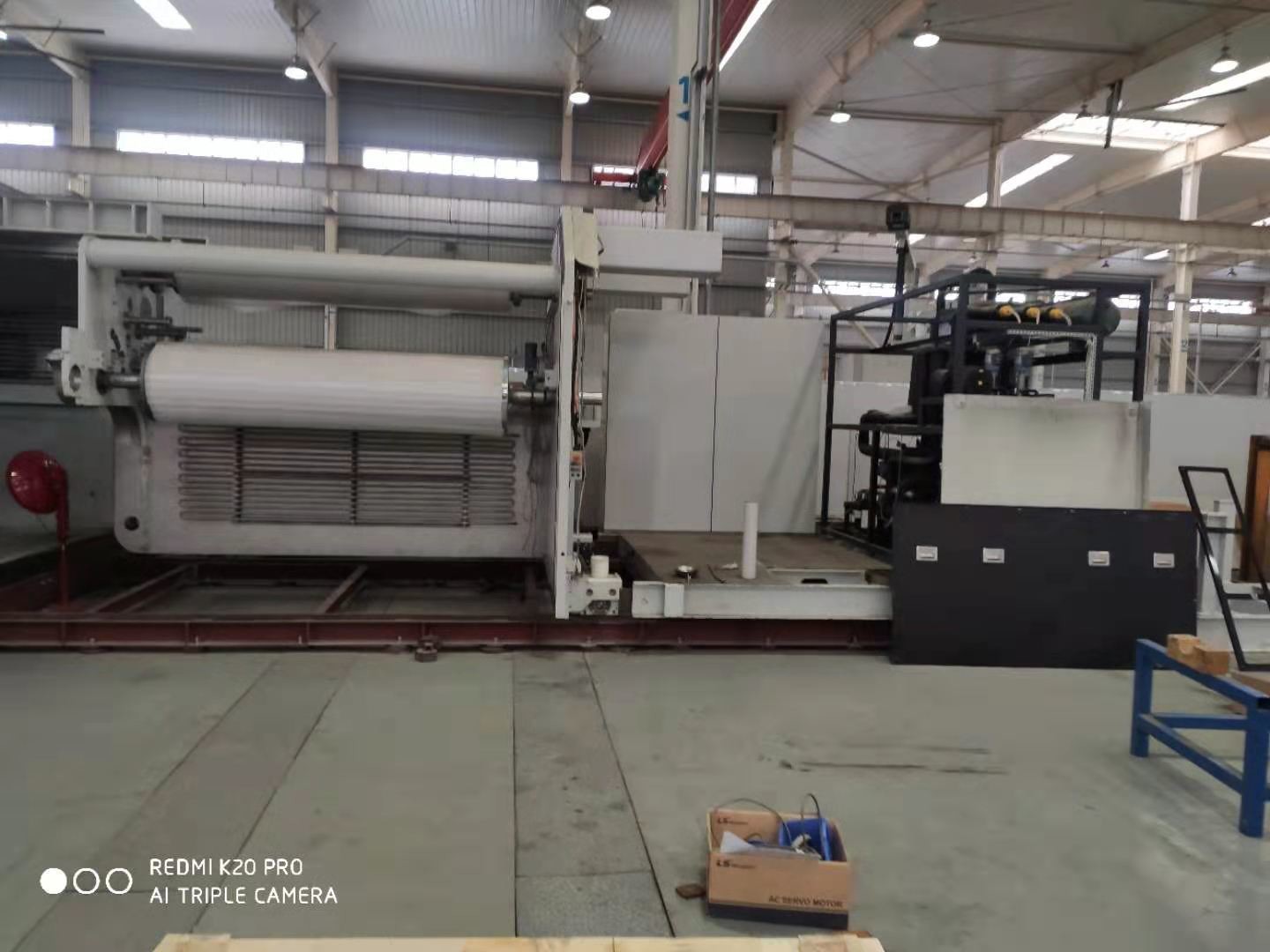

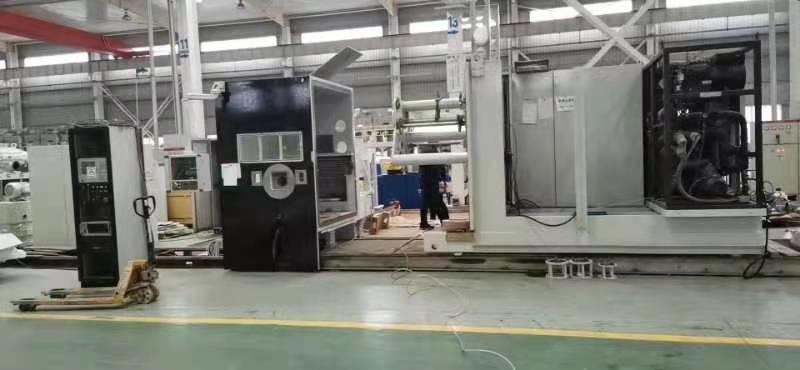

Our Factory
Our customers
FAQ
Q: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q:Where is your factory located? Can I visit it before I place an order?
A:Our factory is located in Hefei, Anhui,China; Welcome to visit our factory.
Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q. Machine installation
A. We could assign the technician to the place for the on-site installation if requested by the purchaser.
