Slitting Rewinder Machine OPP 2.0Mic~12Mic

Hefei Dongsheng Machinery Technology Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

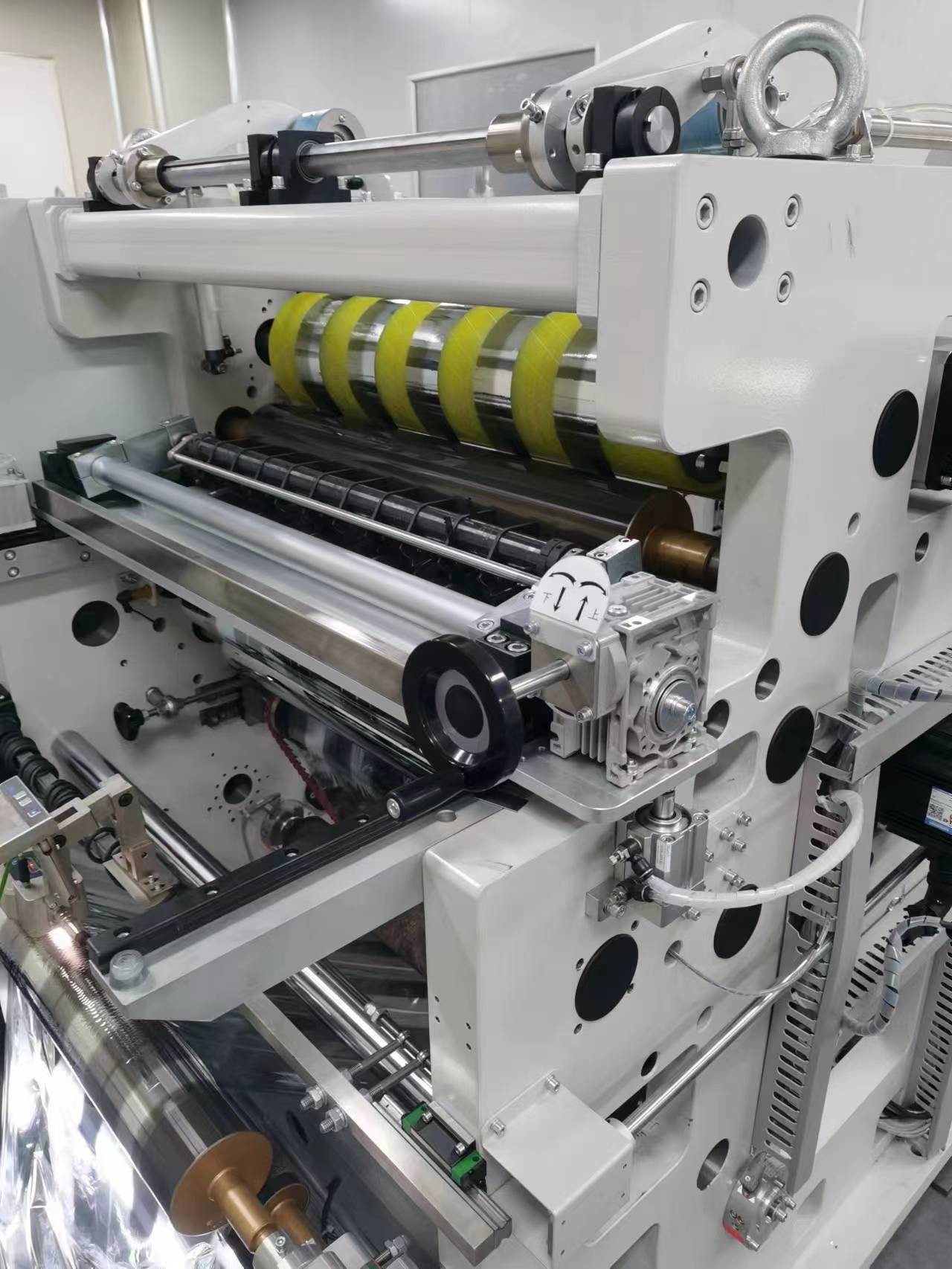

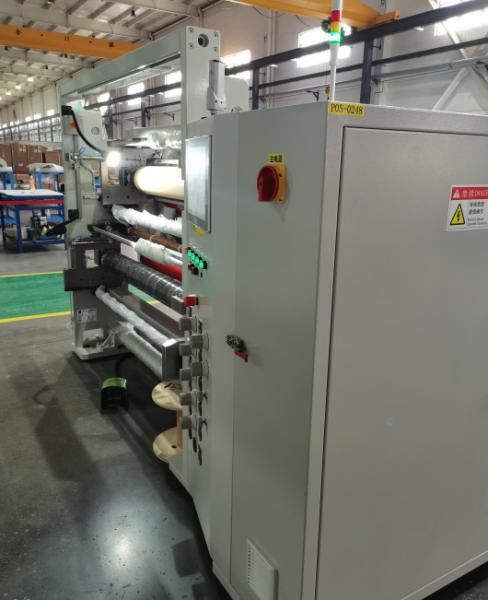

Slitting Rewinder Machine OPP 2.0Mic~12Mic

  • 1
  • 2

Brand Name : DST

Model Number : DSC

Certification : SGS

Place of Origin : China

MOQ : 1set

Price : Based on Specification

Payment Terms : T/T

Supply Ability : 7 sets in 4 months

Delivery Time : Around 4 months

Packaging Details : Wooden Case

Product Name : Slitting Rewinder Machine

Substrate : OPP.2.0Mic~12Mic; PET.1.2Mic~8Mic

Working Speed : Max. 150m / min

Machine Dimension : 2280 W X 2210 L X 1500 H MM (Including Electric Device)

Colour : White-Gray

Electricity : 220Volt, 60Hz, 3Phase

Average Consumption : Approx.12KVA

Voltage Variation : <±10%

Pressure : Approx.5 Bar Gauge

PLC : Beckhoff Germany

Touch Computer : Advantech China

Contact Now

Slitting Rewinder Machine

1. APPLICATION AND FEATURES

The film - Slitting Rewinder Machine is especially designed for slitting metallized plastic films of capacitor applications.

2. TECHNICAL DATA

  • Winding System: Center surface winding system with dual shafts
  • Slitting System: Razor blades cutting
  • Substrates: OPP. 2.0mic-12mic ; PET.1.2mic- 8mic
  • Substrate Width: Max. 920mm
  • Slitting Widths: Min. 4 .5 mm - Max.400 mm
  • Slitting Width: 4.5mm-400mm
  • Unwind Diameter: Max.650 mm
  • Rewind Diameter: Max.350 mm
  • Working Speed: Max. 300 m/min

3. SERVICE

  • Electricity

1) 3 phase x 220 volt x 60 Hz

2) Connected power: approx. 18 kVA

3) Average consumption: approx. 12 kW

4) Voltage variation: <±10%

5) Frequency variation: <+5%

  • Compressed air

1) Clean compressed air free from moisture, dirt and oil

2) Pressure: Approx. 5 bar gauge

4. MACHINE DESCRIPTION

  • Rewind section

Features: Both "Horizontal Moving Arms" are positioned in front ofthe machine.

  • Slitting section

1)Razor blade cutting system

Features: Slitting cartridge moves back to the rear side of themachine on LM guides for the easy access of bladesassembly.

2) Wave cutting system (Optional)

Features: lndividual cutting unit with a separate AC servo drive

  • Transport section

Main drive: Flat belt synchronization by a separate AC servo motor

  • Unwind section

Features: AC servo motor driven stand arms combined with main

Slitting Rewinder Machine OPP 2.0Mic~12Mic

  • COMPETITIVE ADVANTAGES

1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.

  • OUR FACTORY

Slitting Rewinder Machine OPP 2.0Mic~12Mic

  • OUR WORKSHOP

Slitting Rewinder Machine OPP 2.0Mic~12Mic

Slitting Rewinder Machine OPP 2.0Mic~12Mic

Slitting Rewinder Machine OPP 2.0Mic~12Mic

  • FAQ


Q: Where is your factory located? Can I visit it before I place an order?
A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.


Q: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.


Q: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.


Q: Payment Terms
A: TT 30% down payment, 70% before shipment.
