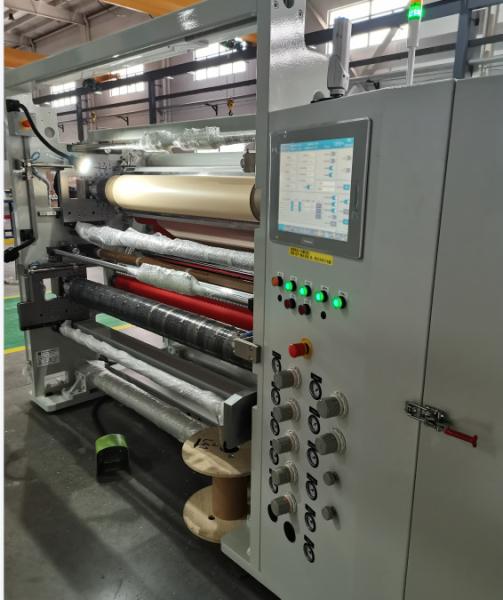

ISO9000 Slitting Rewinder Machine 220Volt 60Hz 3Phase
1. APPLICATION AND FEATURES
The film - Slitting Rewinder Machine is especially designed for slitting metallized plastic films of capacitor applications.
2. TECHNICAL DATA
- Winding System: Center surface winding system with dual shafts
- Slitting System: Razor blades cutting
- Substrates: OPP. 2.0mic-12mic ; PET.1.2mic- 8mic
- Substrate Width: Max. 920mm
- Slitting Widths: Min. 4 .5 mm - Max.400 mm
- Slitting Width: 4.5mm-400mm
- Unwind Diameter: Max.650 mm
- Rewind Diameter: Max.350 mm
- Working Speed: Max. 300 m/min
3. MACHINE DESCRIPTION
Features: Both "Horizontal Moving Arms" are positioned in front ofthe machine.
1)Razor blade cutting system
Features: Slitting cartridge moves back to the rear side of themachine on LM guides for the easy access of bladesassembly.
2) Wave cutting system (Optional)
Features: lndividual cutting unit with a separate AC servo drive
Main drive: Flat belt synchronization by a separate AC servo motor
Features: AC servo motor driven stand arms combined with main
1. We offer high quality products at competitive price;
2. customs clearance is guaranteed;
3. Good after-sale service;
4. Flexible payment terms;
5. With excellent products and efficient services, we are well known both at home and abroad.
Q1: Is Dongsheng a factory or trading company?
A: Dongsheng is a factory.
Q2: Where is your factory located? Can I visit it before I place an order?
A: Of course, welcome to visit our factory. Our factory is located in Hefei, Anhui,China.
Q3: Which countries have you exported to?
A: We have exported our products to all over the world, such as Europe, USA, Japan, Korea, India etc.
Q4: How about the warranty and after-sale service?
A: We provide 12 months warranty and lifetime technic suport for all machinery.
The response is available within 12 hours while the solution for the troubleshooting is provided within 48 hours.
Q5: Payment Terms
A: TT 30% down payment, 70% before shipment.
Q6: Machine installation
A: We could assign the technician to the place for the on-site installation if requested by the purchaser.
